Quick Comparison Table

Specification Xeyar 240 Xeyar 360

Charging Power Up to 240 kW DC Up to 360 kW DC
Energy Storage 140 kWh graphene supercapacitor-based cells 240 kWh graphene supercapacitor-based cells
Output Voltage Range: 200 V - 1000 V DC
Plug Type: 2 x CCS1 (liquid-cooled cables)
Cable Length: 5–7 meters
Cooling: Passive air-cooled / No cooling required
User Interface: 12” touchscreen, RFID, optional payment terminal
Installation Distance: Up to 218 yd (grid), up to 109 yd (dispenser)
Communication: OCPP 1.6, WiFi, 4G, Ethernet
Surge Power: Protection Up to 1000% for 2 sec
Power Factor Correction: Active, to unity
Storage Voltage: 750 V nominal
Cycle Life: Up to 4 cycles/day, long degradation-free life
Round Trip Efficiency (DC): ~99.1%
Depth of Discharge: 100%
Dimensions (Storage Unit): 2.8 x 3.5 x 6.5 ft
Weight (Storage Unit) 800 kg 1200 kg
Noise / Cooling: Silent / None required
Operating Temperature: -30°C to 70°C
Installation: Indoor/Outoor compatible
Certifications: UN 38.3, FCC Part 15B
Warranty: 10-year with service contract
Ideal Application Urban, mid-traffic locations Highways, remote, heavy-traffic

High-Level Features Shared by Both Models

Supercapacitor-Based Energy Storage

Graphene supercapacitor cells provide ultra-fast power buffering, high round-trip efficiency (~99.1%), and consistent 100% depth of discharge.

Long Cycle Life

Rated for up to 4 full cycles per day, maintaining performance with a long, degradation-free life.

Passive Cooling and Silent Operation

No active cooling required for supercapacitor storage; silent emission profile.

Flexible Power Input and Application

Supports installation up to 218 yards from grid and 109 yards from dispenser; adaptable to varied urban and remote locations.

User-Centric Interface

12” sunlight-readable touchscreen, RFID, and payment terminal enable secure and convenient charging.

Communications and Control

OCPP 1.6 compliant, supports WiFi, 4G, and Ethernet for reliable connectivity and remote management.

Robust Protection & Compliance

Surge power protection up to 1000% for 2 seconds; certified to UN 38.3 and FCC Part 15B standards.

Comprehensive Warranty

10-year performance warranty with service contract assures long-term reliability.

Eco-Friendly Integration

Compatible with renewable energy inputs to minimize environmental impact.

Grid-Independent Operation

Provides dependable charging in areas with limited or unreliable grid access.

Designed to Endure

Built to maintain performance across a wide temperature range and harsh conditions.

Scalable Architecture

Easily adaptable to future capacity and network expansion requirements.

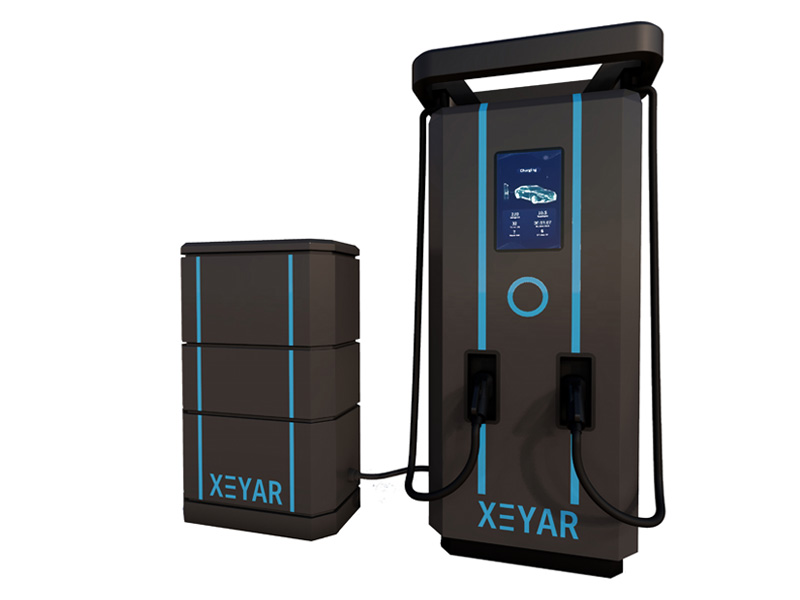

Xeyar 240

240 kW Fast DC Charger

Xeyar 240 delivers high-efficiency EV charging for urban and mid-traffic locations. Integrating a 140 kWh graphene supercapacitor-based buffer with a robust power conversion system, it provides reliable, ultra-fast charging in grid-constrained or flexible installation scenarios.

Key Features

  • Rated Power Output: Up to 240 kW DC for rapid EV charging
  • Supercapacitor Buffer: 140 kWh graphene supercapacitor-based energy storage
  • Output Voltage Range: 200 V – 1000 V DC
  • Plug Type: 2 x CCS1 connectors with liquid-cooled cables
  • Cable Length: 5–7 meters for flexible installation
  • Cooling: Passive air-cooled (no additional cooling required)
  • User Interface: 12” sunlight-readable touchscreen; RFID authentication; optional payment terminal
  • Input Power Flexibility: Operates up to 218 yards from grid and up to 109 yards from dispenser; supports multiple sources
  • Communication Protocols: OCPP 1.6, WiFi, 4G, Ethernet
  • Surge Power Protection: Supports up to 1000% for 2 seconds
  • Power Factor Correction: Active to unity
  • Performance Efficiency: ~99.1% round-trip DC efficiency
  • Depth of Discharge: 100% DoD permissible with no detrimental impact on cycle life
  • Charge/Discharge Cycles: Supports up to 4 cycles per day; long, degradation-free performance
  • Environmental Tolerance: Operating temperature from -20°C to 50°C (-4°F to 122°F)
  • Noise Emission: Silent operation
  • Physical Dimensions: 2.8 x 3.5 x 6.5 ft; weight 800 kg
  • Installation: Compatible with indoor and outdoor setups; modular, compact footprint
  • Certifications: UN 38.3 transport compliance, FCC Part 15B
  • Warranty: 10-year performance warranty (with service contract)

Supercapacitor-Based Energy Storage

  • Capacity: 140 kWh, graphene supercapacitor-based cells.
  • Voltage: 750 V nominal.
  • Round Trip Efficiency: ~99.1% at DC level for optimal energy utilization.
  • Cycling: Supports up to 4 full charge-discharge cycles per day with minimal degradation.
  • Depth of Discharge: Operates at 100% without negative impact on storage health.
  • Cooling: No cooling required; silent operation.
  • Dimensions: 2.8 x 3.5 x 6.5 ft.
  • Weight: 800 kg.
  • Installation: Suitable for both outdoor and indoor environments.
  • Noise Emission: Silent operation for flexible site placement.
  • Certifications: UN 38.3 transport compliance, FCC Part 15B.
  • Warranty: 10-year performance warranty with service contract.

Specifications

  • Nominal Charging Power: 240 kW
  • Energy Storage Capacity: 140 kWh supercapacitor system
  • Plug Configuration: Dual CCS1, liquid-cooled
  • Operating Temperature: -30°C to 70°C
  • Input Power Flexibility: Grid and renewable integration
  • Communication: OCPP 1.6, WiFi, 4G, Ethernet
  • Protection: Surge handling and active PFC
  • Certifications & Warranty: UN 38.3, FCC Part 15B, 10-year warranty with service contract

Ideal Use Case

Xeyar 240 is optimized for deployment in urban centers, parking facilities, and commercial districts experiencing moderate EV traffic. Its high-performance buffer system ensures stable, ultra-fast charging even where grid access is limited or intermittent. The design supports continuous operation and rapid deployment, making it a cost-effective, scalable solution for expanding urban EV infrastructure.

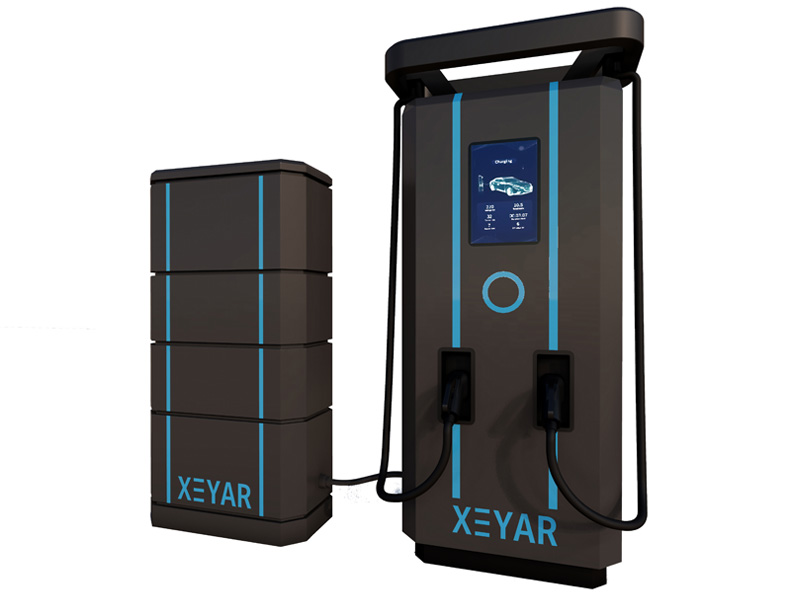

Xeyar 360

360 kW Ultra-Fast DC Charger

Engineered for high-throughput environments, the Xeyar 360 delivers precise, consistent ultra-fast charging performance. Featuring advanced supercapacitor-based energy storage and robust construction, it is optimized for deployment in highways, rest stops, depots, and remote locations where peak reliability and speed are mandatory.

Key Features

  • Rated Power Output: Up to 360 kW DC for rapid vehicle charging.
  • Output Voltage Range: 200 V – 1000 V DC.
  • Plug Type: 2 x CCS1 connectors with liquid-cooled cables.
  • Cable Length: 5–7 meters, suitable for versatile installations.
  • Cooling: Passive air-cooled design for system simplicity and reliability.
  • User Interface: 12” sunlight-readable touchscreen, RFID, and optional payment terminal.
  • Installation Distance: Supports installation up to 218 yards from grid connection and 109 yards from dispenser location.
  • Communication Protocols: OCPP 1.6, WiFi, 4G, and Ethernet connectivity.
  • Surge Power Protection: Supports up to 1000% for 2 seconds.
  • Power Factor Correction: Active PFC to unity.

Supercapacitor-Based Energy Storage

  • Rated Power Output: Up to 360 kW DC for rapid vehicle charging.
  • Output Voltage Range: 200 V – 1000 V DC.
  • Plug Type: 2 x CCS1 connectors with liquid-cooled cables.
  • Cable Length: 5–7 meters, suitable for versatile installations.
  • Cooling: Passive air-cooled design for system simplicity and reliability.
  • User Interface: 12” sunlight-readable touchscreen, RFID, and optional payment terminal.
  • Installation Distance: Supports installation up to 218 yards from grid connection and 109 yards from dispenser location.
  • Communication Protocols: OCPP 1.6, WiFi, 4G, and Ethernet connectivity.
  • Surge Power Protection: Supports up to 1000% for 2 seconds.
  • Power Factor Correction: Active PFC to unity.

Specifications

  • Nominal Charging Power: 360 kW
  • Energy Storage Capacity: 240 kWh supercapacitor system
  • Plug Configuration: Dual CCS1, liquid-cooled
  • Operating Temperature: -30°C to 55°C (-22°F to 131°F)
  • Input Power Flexibility: Grid and renewable integration
  • Communication: OCPP 1.6, WiFi, 4G, Ethernet
  • Protection: Surge handling and active PFC
  • Certifications & Warranty: UN 38.3, FCC Part 15B, 10-year warranty with service contract

Ideal Use Case

Optimized for high-traffic and remote applications, the Xeyar 360 ensures rapid vehicle turnaround and sustained charging availability. It is particularly suited for highway corridors, logistics hubs, and sites where conventional grid infrastructure is limited or unreliable. The Xeyar 360 maximizes uptime, mitigates grid constraints, and provides a dependable charging backbone for the future of electric mobility.

Compare the Models

Explore the key differences between the Xeyar 240 and Xeyar 360. Use the following matrix to identify the best option for your specific requirements.

Features & Use Cases Xeyar 240 Xeyar 360
Charging Power 240 kW Ultra-Fast DC 360 kW Ultra-Fast DC
Energy Storage 140 kWh Supercapacitor System 240 kWh Supercapacitor System
Input Power Flexibility Supports various energy inputs, including renewables Enhanced handling of diverse energy inputs
Operational Range -20°C to 70°C -30°C to 55°C (-22°F to 131°F)
Load Handling Optimized for medium traffic Ideal for high-demand and remote applications
Ideal Applications Urban and mid-traffic areas Highways, rest stops, and depots
Scalability Features Compact and flexible for urban use High-capacity design for future demand growth
Deployment Profile Best for city hubs, parking lots, commercial centers Long-haul travel routes, logistics hubs, transit hubs

Both Xeyar models deliver exceptional performance, ensuring reliable, eco-friendly, and scalable charging solutions. Choose the one that best suits your infrastructure needs and operational demands!
